Dimensions

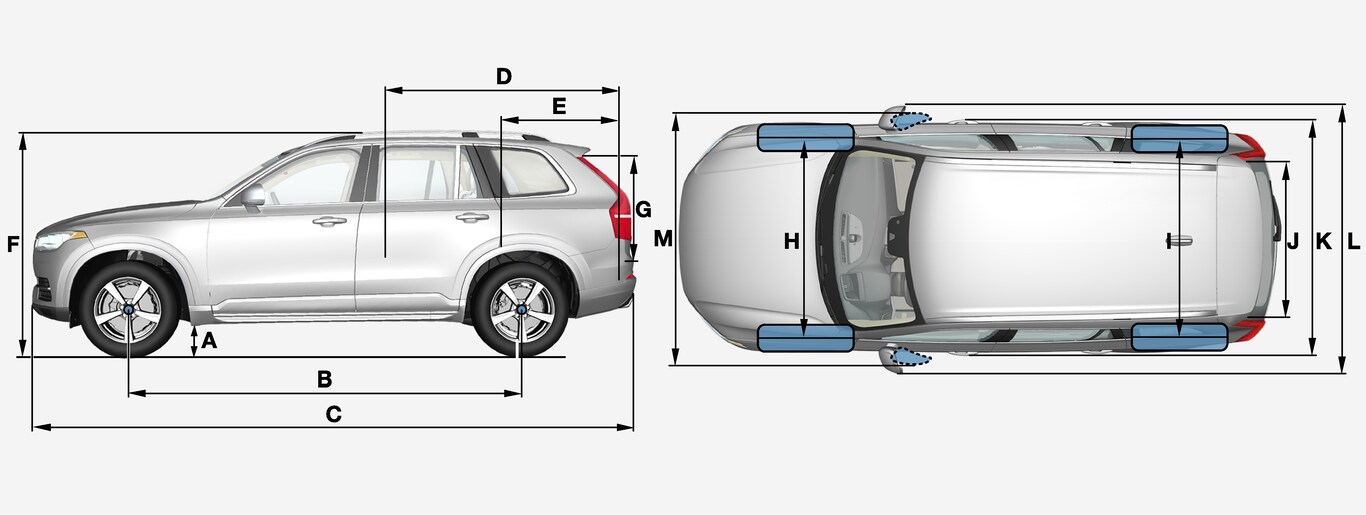

The following table lists your vehicle's most important dimensions.
| Dimension | In. (mm) | |
|---|---|---|
| A | Ground clearance (curb weight + 2 people)[1] | 9 (228)[2] 9.1 (232)[3] |
| B | Wheelbase | 117.5 (2984) |
| C | Length | 194.9 (4950) |
| D | Load length, floor, seatback down[4] | 80.3 (2040) 49.6 (1260)[5] |
| E | Load length, floor | 48.0 (1220)[2] 21.8 ( 554)[3] 30.0/35.4 (761/898)[6] |
| F | Height | 69.9 (1776) |
| G | Load height | 32.1 (816) |
| H | Track, front (models without pneumatic suspension) | 65.9 (1673)[7] 65.6 (1665)[8] |
| Track, front (models with pneumatic suspension) | 66.0 (1676)[7] 65.7 (1668)[8] | |
| I | Track, rear (models without pneumatic suspension) | 65.8 (1675)[7] 66.1 (1667)[8] |
| Track, rear (models with pneumatic suspension) | 66.1 (1679)[7] 65.8 (1671)[8] | |
| J | Load width, floor | 46.9 (1192) |
| K | Width | 75.7 (1923)[9] 76.0 (1931)[10] 77.1 (1958)[11] |
| L | Width incl. door mirrors (folded out) | 84.3 (2140) |
| M | Width incl. door mirrors (folded in) | 79.1 (2008) |
