Charging cable with control unit

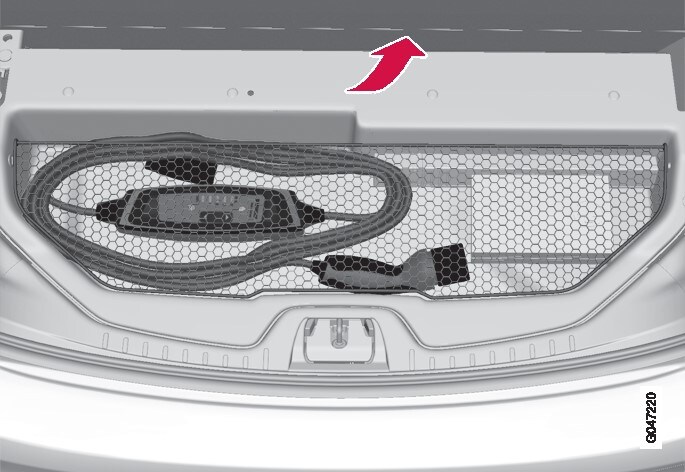

The charging cable is located in the storage compartment under the cargo area's floor cover.
Specifications, charging cable | |
---|---|
Enclosure class | IP67 |
Ambient temperature | -32 ºC to +50 ºC |
경고
The charging cable must not be used if any part of it is damaged - there is then the risk of electric shock or serious personal injury.
A damaged or inoperative charging cable must only be repaired by a workshop - an authorised Volvo workshop is recommended.
중요
Control unit

Control unit display and controls.
![]() | Indicator 1 showing selected charging current. |
![]() | The symbol illuminates when the charging cable is plugged into a 230 VAC socket. |
![]() | Pushbuttons to increase/decrease the charging current. |
![]() | The symbol illuminates when the charging cable is plugged into the car's 230 VAC input socket. |
중요
Multiple plugs, overvoltage protection or similar devices must not be used together with the charging cable since this may involve a risk of fire, electric shocks, etc.
An adapter between the 230 VAC socket and charging cable may only be used if the adapter is marked with approval in accordance with IEC 61851 and IEC 62196.
참고
The charging cable will remember the last setting of the charging current. It is therefore important to adjust the setting if another 230 VAC socket is used at the next charging.
