Two-stage booster seat* - lowering
The integrated booster seat in the rear seat can be folded down from the upper or lower stage to fully lowered position in the seat cushion. However, it is not possible to adjust the booster cushion from the upper stage to the lower stage.

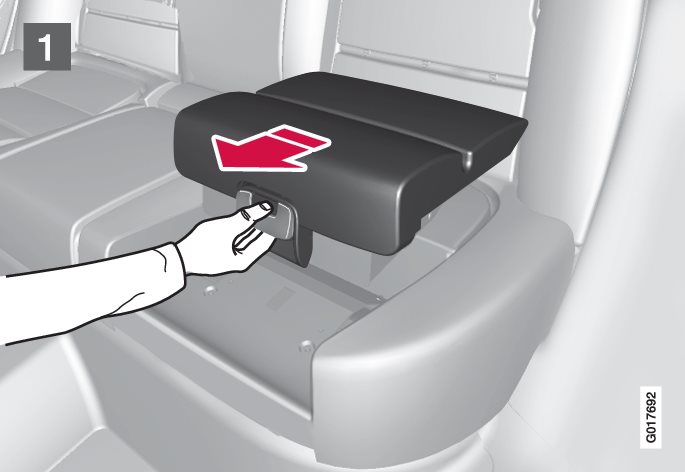

Pull the handle forwards to release the cushion.

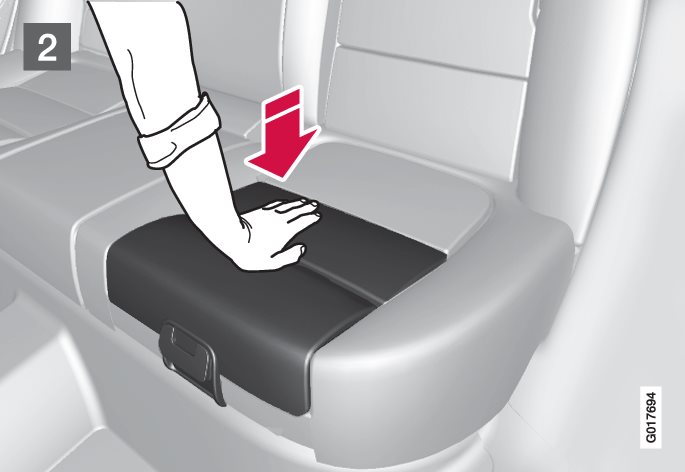

Press down with your hand in the centre of the cushion in order to lock it.
Check that there are no loose objects (e.g. toys) left behind in the space under the cushion before lowering.
When folding the rear backrest the booster seat must first be lowered.
If the instructions for the two-stage booster seat are not followed then the child could sustain serious injury in the event of an accident.
Volvo recommends that repair or replacement is only carried out by an authorised Volvo workshop. Do not make any modifications or additions to the booster cushion. If an integrated booster cushion has been subjected to a major load, such as in conjunction with a collision, the entire booster cushion must be replaced. Even if the booster cushion appears to be undamaged, it may not afford the same level of protection. The booster cushion must also be replaced if it is heavily worn.
