Safety net*

A safety net prevents loads from being thrown forward in the passenger compartment in the event of sudden braking.

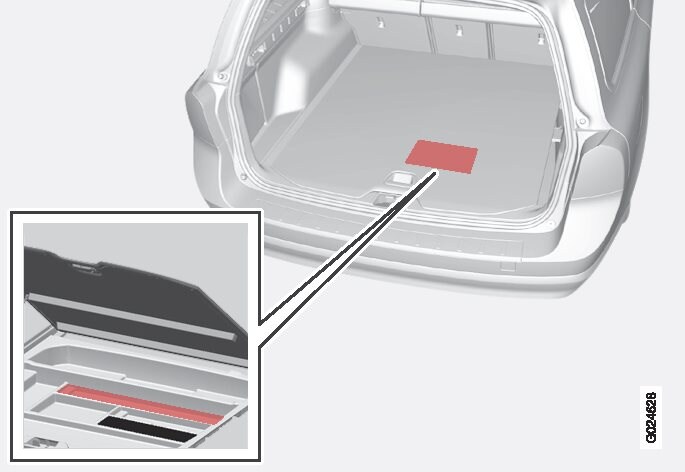

Storage space, safety net cassettes.

Storage space, safety net cassettes.

A rollable safety net comprising two cassettes has a storage space under the cargo area floor hatch.

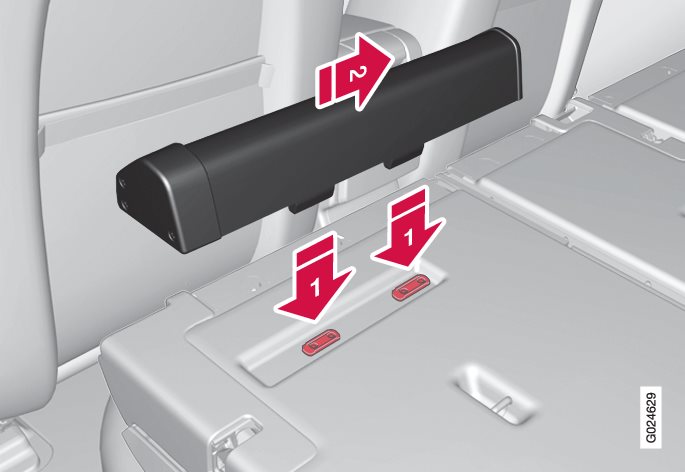

Securing the net cassettes

A rollable safety net comprising two cassettes has a storage space under the cargo area floor hatch.

The two-part safety net cassette is secured on the rear of the backrest. The narrowest cassette is secured on the left-hand side (seen from the tailgate).

Fold the rear seat's backrest forward, see Seats, rear.
Align the cassette's anchor rails in front of the backrest attachment lugs .
Slide the cassette into the attachment lugs .
Fold back and lock the backrests.
  • Removing the cassette takes place in reverse order.

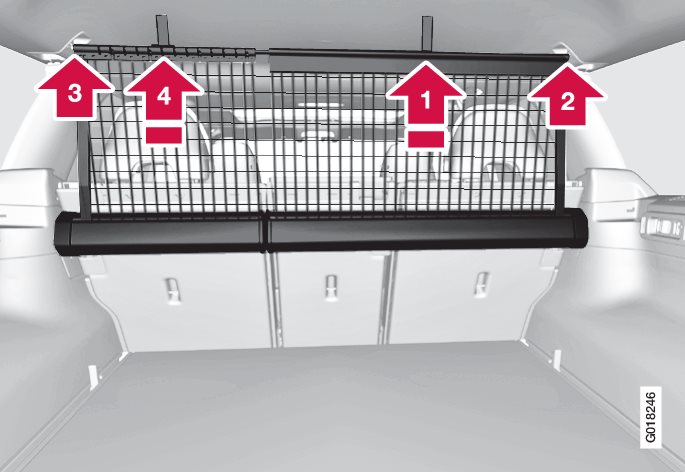

Using the safety net

Pull the net up from the cassettes. The net is self-locking after approx. one minute if the rear seat's backrests are raised.

Pull up the right-hand section of the net using its strap.

Insert the rod in the mounting on the right-hand side and then press it forward – the rod locks in with a click.

Pull out the rod's telescope section and click it in on the other side.

Pull up the left-hand safety net and hook it into the rod.

  • Folding up takes place in reverse order.

The net can also be used when the rear seat's backrests are folded forward.

Removing the net cassettes

Roll the safety nets into the cassettes in accordance with the procedure in the section entitled "Using the safety net", but in reverse.
Fold the whole backrest forward.
Slide the cassettes out until they loosen from the anchor rails.

Store the cassettes in their compartment under the cargo area floor hatch.

 경고

Loads in the luggage compartment must be anchored well, and also using a correctly fitted safety net.
