Electronic climate control - ECC

ECC (Electronic Climate Control) maintains the temperature selected in the passenger compartment and can be set separately for the driver's side and passenger side.

The auto function is used to automatically control temperature, air conditioning, fan speed, recirculation and air distribution.

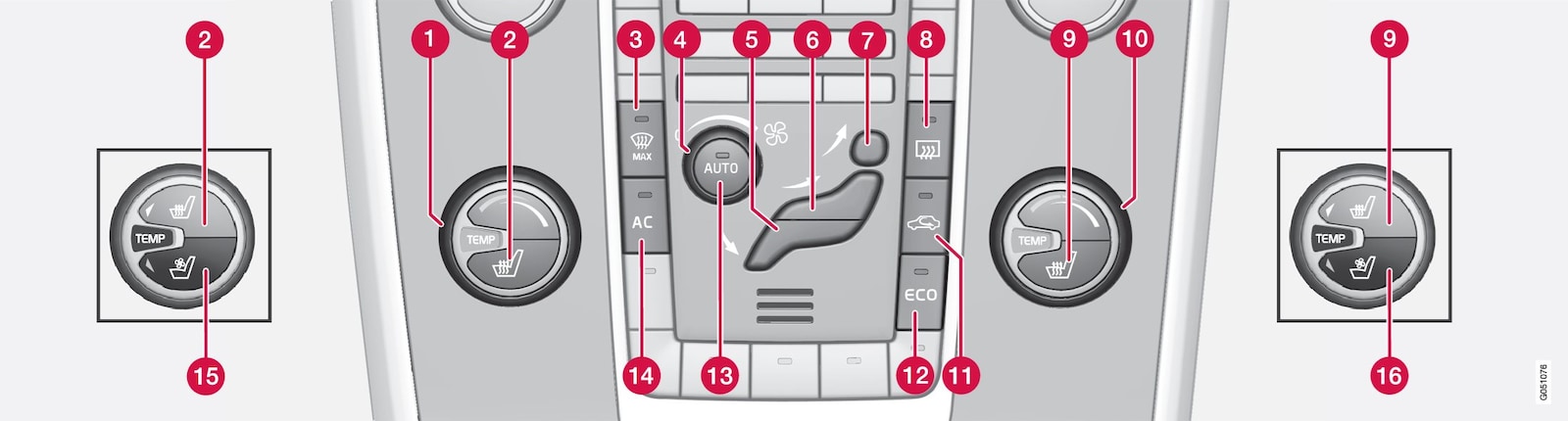

P3-1420-S80/V70/XC70-Climate ECC 3-column
  1. Ikon röd cirkel 1Temperature control, left-hand side
  2. Ikon röd cirkel 2Electrically heated front seat , left side1
  3. Ikon röd cirkel 3Max. defroster
  4. Ikon röd cirkel 4Fan
  5. Ikon röd cirkel 5Air distribution - ventilation floor
  6. Ikon röd cirkel 6Air distribution - air vent instrument panel
  7. Ikon röd cirkel 7Air distribution - defroster windscreen
  8. Ikon röd cirkel 8Rear window and door mirror defrosters
  9. Ikon röd cirkel 9Electrically heated front seat, right-hand side1
  10. Ikon röd cirkel 10Temperature control, right-hand side
  11. Ikon röd cirkel 11Recirculation
  12. Ikon röd cirkel 12ECO
  13. Ikon röd cirkel 13AUTO - Automatic climate control
  14. Ikon röd cirkel 14AC - Air conditioning on/off
  15. Ikon röd cirkel 15Ventilated front seat*, left-hand side
  16. Ikon röd cirkel 16Ventilated front seat*, right-hand side
  1. *Option/accessory.
  2. 1The button has a different location depending on whether or not the car is equipped with ventilated front seat*.
