Fuses in cargo area
Fuses in the cargo area protect, amongst other things, power seats*, airbags and seatbelt tensioners.

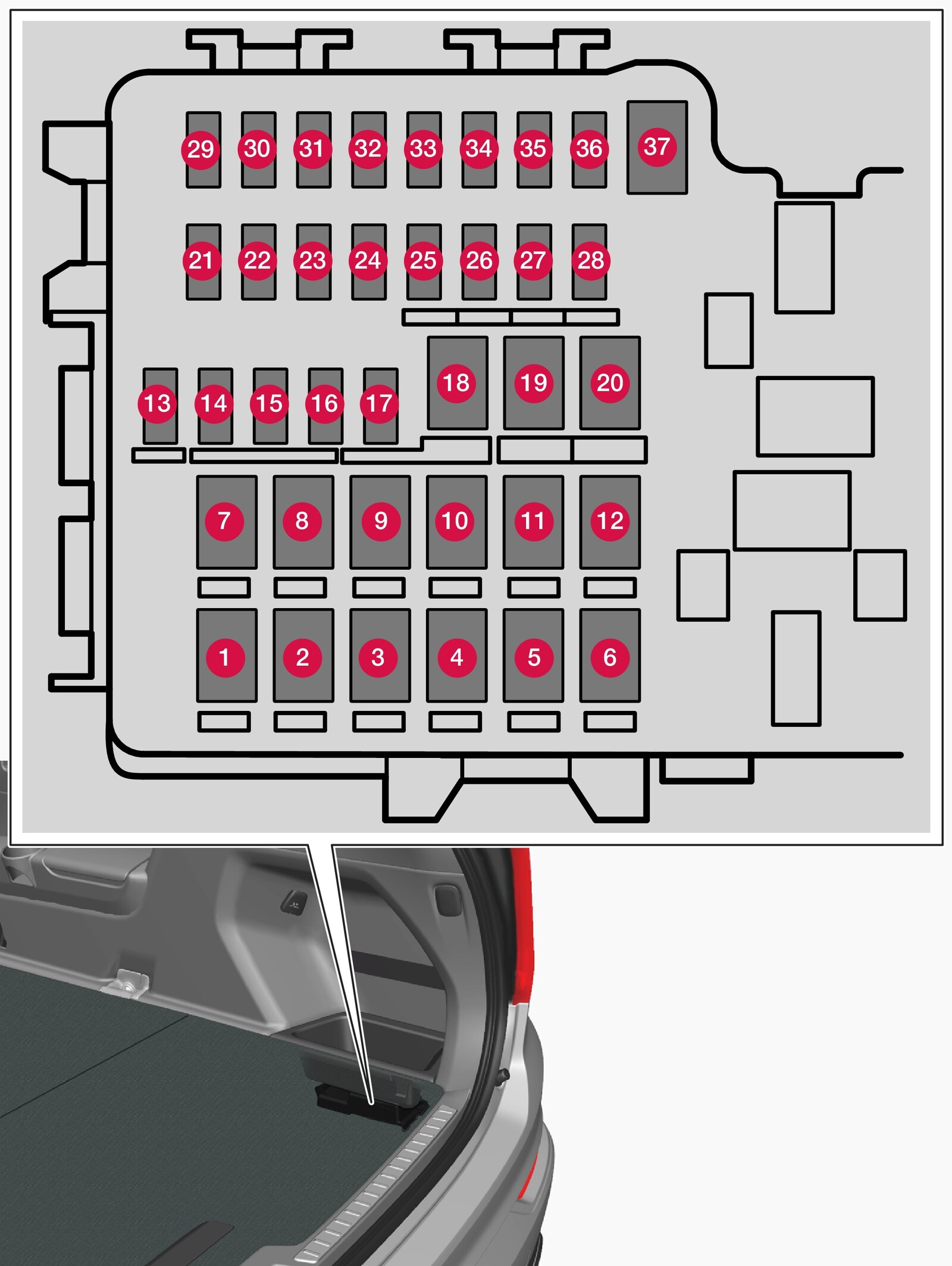

The central electrical unit is located under the storage compartment on the right-hand side.
On the inside of the cover for the fuse box in the engine compartment there are tweezers that facilitate the procedure for the removal and fitting of fuses.
The fuse box in the engine compartment also provides space for several spare fuses.
Positions
- Fuses 13-17 and 21-36 are of the "Micro" type.
- Fuses 1-12, 18-20 and 37 are of the "MCase" type and should be replaced by a workshop 1.
| Function | [A]2 | |
|---|---|---|
| Rear window defroster | 30 | |
| Electrically operated seat, left-hand side rear3 | 203 | |
| Compressor for air suspension* | 40 | |
| Electrically-driven heater right-hand side rear | 30 | |
| - | - | |
| Electrically-driven heater left-hand side rear | 30 | |
| Electrically operated seat, right-hand side rear3 | 203 | |
| - | - | |
| Power operated tailgate* | 25 | |
| Electrically operated front passenger seat* | 20 | |
| Towbar control module* | 40 | |
| Seatbelt pretensioner module, right-hand side | 40 | |
| Internal relay coils | 5 | |
| - | - | |
| Module for detecting foot movement* (for opening the power operated tailgate) | 5 | |
| - | - | |
| - | - | |
| Towbar control module* | 25 | |
| Power driver seat* | 20 | |
| Seatbelt pretensioner module, left-hand side | 40 | |
| Parking camera* | 5 | |
| - | - | |
| - | - | |
| Ionic air cleaner3 | 53 | |
| Supply when the ignition is switched on | 10 | |
| Control module for airbags and seatbelt tensioners | 5 | |
| Refrigerator3; Heated/cooled cup holder, rear3 | 103 | |
| Seat heating left-hand side rear * | 15 | |
| - | - | |
| Blind Spot Information (BLIS)* | 5 | |
| - | - | |
| Seatbelt pretensioner modules | 5 | |
| Actuator for exhaust gases | 5 | |
| - | - | |
| - | - | |
| Seat heating right-hand side rear* | 15 | |
| - | - |
