Air distribution

The climate control system distributes the incoming air via a number of different vents in the passenger compartment.

Overview of air distribution

P5-1507–Climate–Air distribution overview

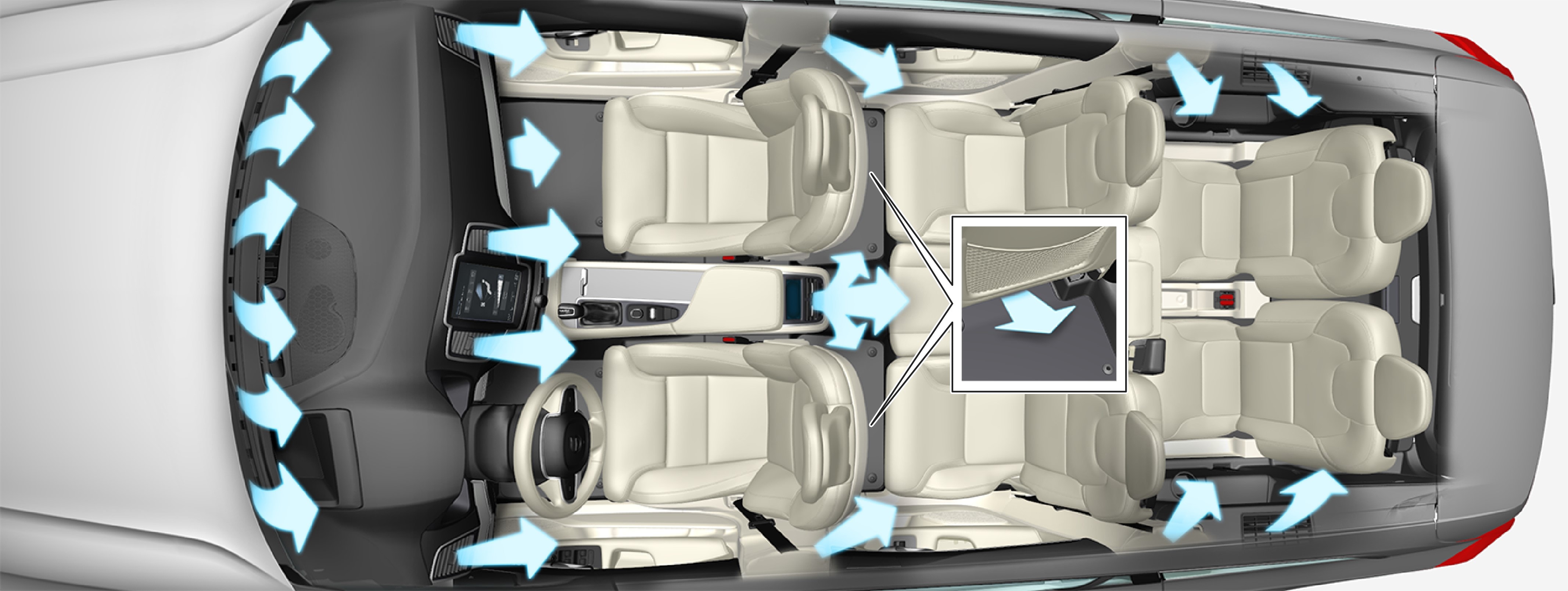

Air distribution in the passenger compartment with 4-zone climate.

Automatic and manual air distribution

With auto-regulated climate running the air distribution takes place automatically. If necessary, the air distribution can be controlled manually.

Adjustable air vents

There are 10 adjustable air vents in the passenger compartment.

P5-1519-XC90H–Climate–Air vents regulation overview

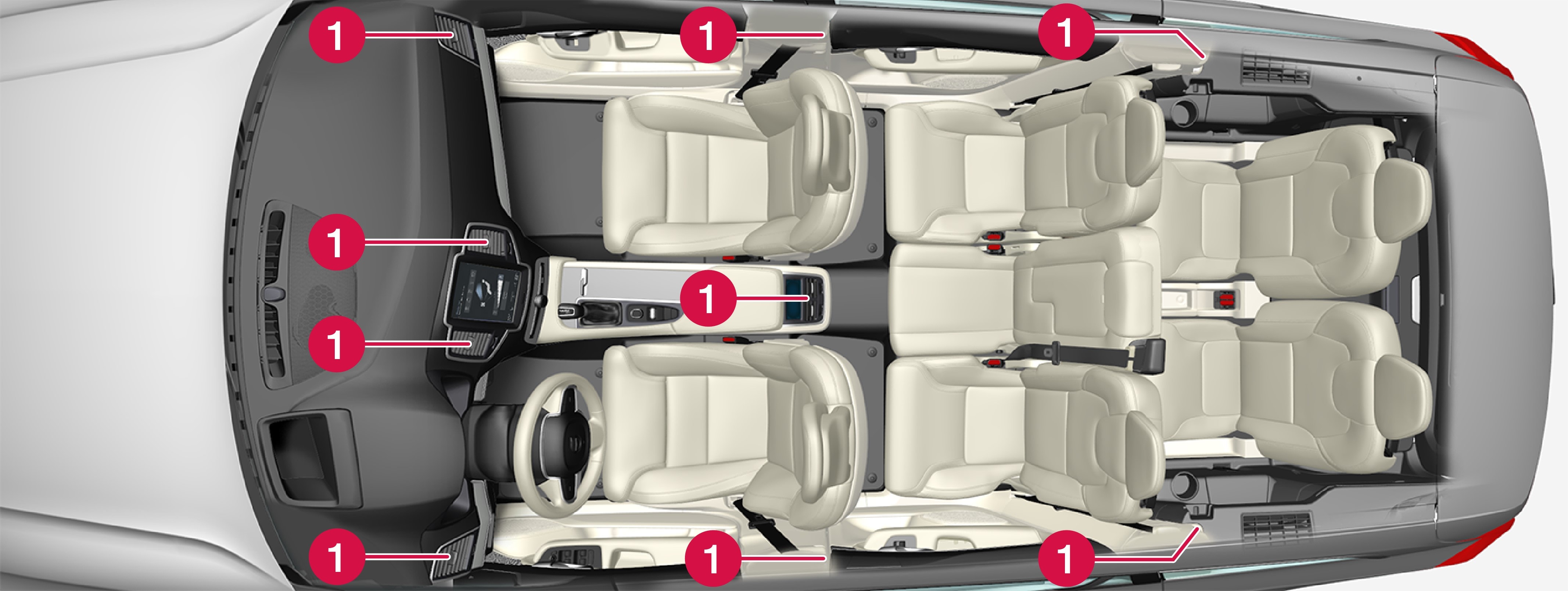

Location of adjustable air vents in the passenger compartment.
  1. P5-Icon red circle 1Four on the instrument panel, two at the rear of the tunnel console, one on each of the door pillars between the front and rear doors and one on each of the door pillars behind the rear doors.

 Note

Remember that small children may be sensitive to air flows and draughts.
