Explore EX40 specifications

Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.

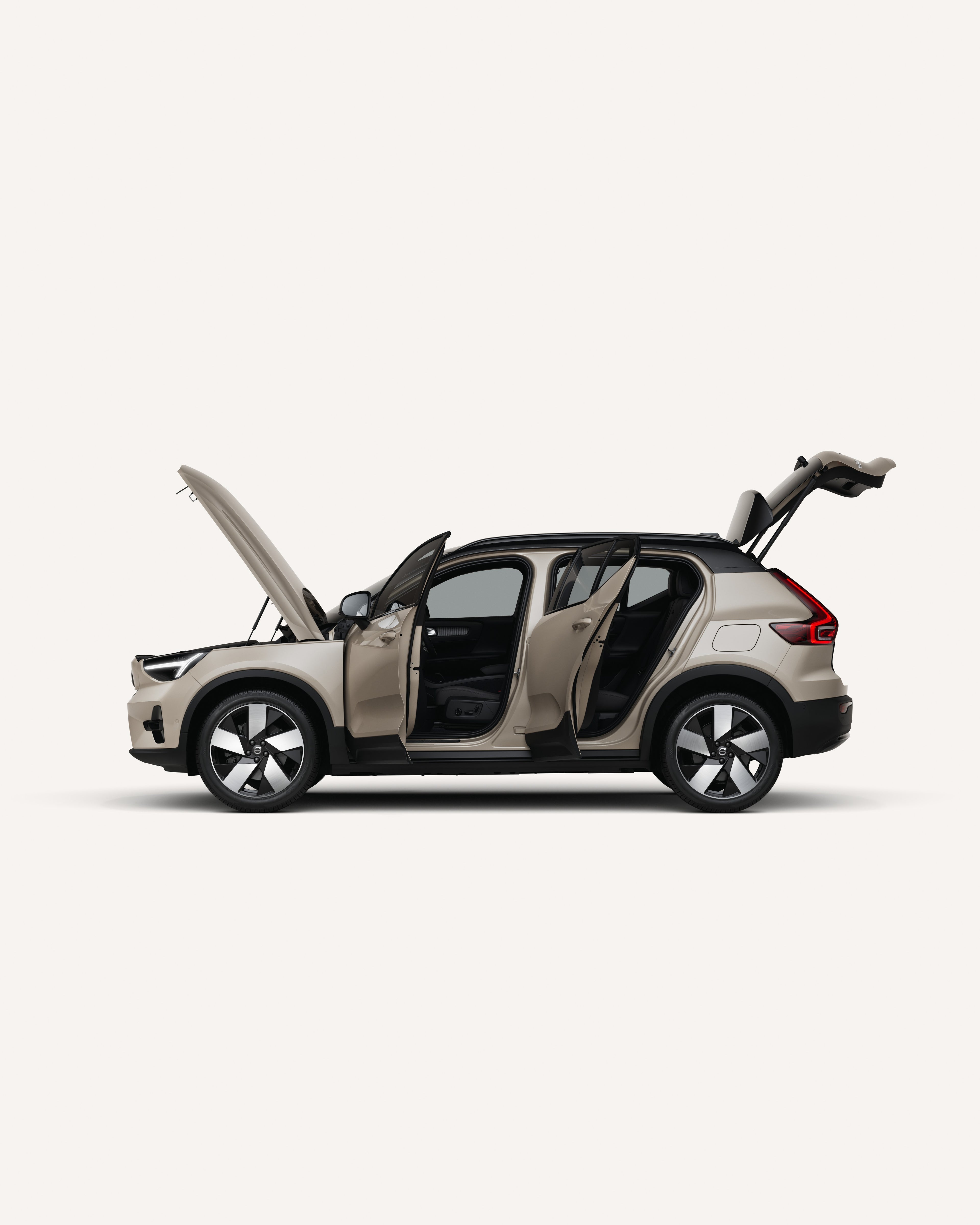

Side view of the fully electric Volvo EX40 with open hood, doors, and trunk.

Platform

Single Motor Extended Range

Starting at $56,545 MSRP†

Platform

Fuel Type
Fully electric
Driveline
RWD
Transmission
Automatic
Number of seats
5
Curb weight
4,407 lb
Gross weight
5555.6 lb
Maximum towing capacity
2,000 lb
Roof load max weight
165 lb

Performance

Electric range (up to)

Electric range (up to)

* EPA-estimated 118 city /94 highway/ 106 combined for single motor variant. EPA-estimated 103 city/ 85 highway/ 94 combined for twin motor variant. Use for comparison purposes only. Your range and MPGe will vary for many reasons, including but not limited to, driving conditions, how and where you drive, how you maintain your vehicle, battery-package/condition, and other factors. Visit fueleconomy.gov for further information.

Up to 296 miles
Power

Power

Power figures are preliminary and derive from estimates and calculations performed by Volvo Cars for the Volvo EX40. These outcomes are not guaranteed.

185 kWh / 248 hp
Max torque
310 lb-ft
0-60 mph

0-60 mph

Acceleration time is based on the specified powertrain. Real-world results will vary depending on various factors, including weather and road conditions, tires and the car's weight.

6.9 s

Charging

Battery capacity
82.0 kWh
Battery charging duration 0-100% (1-phase 48A)

Battery charging duration 0-100% (1-phase 48A)

Figures are preliminary and derived from estimates and calculations performed for the Volvo EX40. These outcomes are not guaranteed. Charging times can vary and depend on factors such as outdoor temperature, battery temperature, charging equipment, battery condition and car condition.

8 h
Charge time (10-80%) (as fast as)

Charge time (10-80%) (as fast as)

Figures are preliminary and derived from estimates and calculations performed for the Volvo EX40. These outcomes are not guaranteed. Charging times can vary and depend on factors such as outdoor temperature, battery temperature, charging equipment, battery condition and car condition.

28.0 min

Twin Motor

Starting at $58,295 MSRP†



Fuel Type
Fully electric
Driveline
AWD
Transmission
Automatic
Number of seats
5
Curb weight
4,623 lb
Gross weight
5840 lb
Maximum towing capacity
2,000 lb
Roof load max weight
165 lb



Electric range (up to)

Electric range (up to)

* EPA-estimated 118 city /94 highway/ 106 combined for single motor variant. EPA-estimated 103 city/ 85 highway/ 94 combined for twin motor variant. Use for comparison purposes only. Your range and MPGe will vary for many reasons, including but not limited to, driving conditions, how and where you drive, how you maintain your vehicle, battery-package/condition, and other factors. Visit fueleconomy.gov for further information.

Up to 260 miles
Power

Power

Power figures are preliminary and derive from estimates and calculations performed by Volvo Cars for the Volvo EX40. These outcomes are not guaranteed.

300 kWh / 402 hp
Max torque
494 lb-ft
0-60 mph

0-60 mph

Acceleration time is based on the specified powertrain. Real-world results will vary depending on various factors, including weather and road conditions, tires and the car's weight.

4.6 s



Battery capacity
82.0 kWh
Battery charging duration 0-100% (1-phase 48A)

Battery charging duration 0-100% (1-phase 48A)

Figures are preliminary and derived from estimates and calculations performed for the Volvo EX40. These outcomes are not guaranteed. Charging times can vary and depend on factors such as outdoor temperature, battery temperature, charging equipment, battery condition and car condition.

8 h
Charge time (10-80%) (as fast as)

Charge time (10-80%) (as fast as)

Figures are preliminary and derived from estimates and calculations performed for the Volvo EX40. These outcomes are not guaranteed. Charging times can vary and depend on factors such as outdoor temperature, battery temperature, charging equipment, battery condition and car condition.

28.0 min

Car dimensions []

Exterior

Height
65.0 in
Width (mirrors incl)
80.1 in
Front track width
63.0 in
Width
75.2 in
Rear track width
63.3 in
Vehicle length
174.8 in
Wheelbase
106.4 in
Turning circle
37.4 ft

Interior

Head room front with panoramic roof
37.6 in
Shoulder room, rear
56.3 in
Hip room, front
54.7 in
Head room rear with panoramic roof
38.3 in
Leg room, front
40.9 in
Hip room, rear
54.6 in
Shoulder room, front
56.7 in
Leg room, rear
36.1 in

Storage

Cargo floor width between wheel housing
39.5 in
Second seatback to tailgate - top of second seatback
26.6 in
First seatback to tailgate - top of first seatback
60.1 in
Cargo capacity - second row up
14.5 cu. ft.
Cargo capacity - first row up
34.1 cu. ft.
Cargo capacity (max) - second row up
18.9 cu. ft.
Cargo capacity (max) - rows folded
57.5 cu. ft.
Cargo capacity (frunk)
0.7 cu. ft.
Closed storage compartments
59 cu.ft.

Track width may differ depending on wheel size.

Features

Category

  • Not included

  • Optional

  • Included

Climate

Afterrun parking climate

      Air purifier and remote cabin air pre-cleaning

          Electric passenger compartment heater and cooler

              Heat pump

                  Heated Steering Wheel

                      Humidity sensor

                          Two-zone climate system

                              Driver's support

                              12.3-inch driver display

                                  360° camera

                                      9-inch center display

                                          Adaptive Cruise Control

                                              Adaptive power steering

                                                  Auto-dim rearview mirrors

                                                      BLIS™ (Blind Spot Information System)

                                                          Collision Mitigation support, rear

                                                              Digital Owner's Manual

                                                                  Fog lights

                                                                      Illuminated vanity mirrors

                                                                          Lane Keeping Aid

                                                                              Oncoming Lane Mitigation

                                                                                  Park Assist, front, rear and sides

                                                                                      Pixel Technology Headlights

                                                                                          Power retractable door mirrors

                                                                                              Rain sensor

                                                                                                  Road Sign Information

                                                                                                      Slippery road alert

                                                                                                          Touring chassis

                                                                                                              Exterior

                                                                                                              19-inch 5-Spoke Glossy Black Diamond Cut Wheels

                                                                                                                  19-inch 5-Spoke Glossy Black Diamond Cut Wheels

                                                                                                                      20-inch 5-Spoke Glossy Black Diamond Cut Wheels

                                                                                                                          All-season tires

                                                                                                                              All-season tires

                                                                                                                                  Body-colored covered grille

                                                                                                                                      Door mirror covers, high-gloss black

                                                                                                                                          High-gloss black side window trim

                                                                                                                                              Panoramic roof

                                                                                                                                                  Protective cap kit, Matte Tech Gray

                                                                                                                                                      Roof rails, glossy black

                                                                                                                                                          Roof top, color coordinated

                                                                                                                                                              Roof top, high-gloss black

                                                                                                                                                                  Tinted rear windows

                                                                                                                                                                      Without rear engine emblem

                                                                                                                                                                          Interior

                                                                                                                                                                          Charcoal headliner

                                                                                                                                                                              Connect Suede Textile/Microtech upholstery

                                                                                                                                                                                  Cutting Edge aluminum decor

                                                                                                                                                                                      EX40 aluminum front tread plates

                                                                                                                                                                                          Folding bag hook

                                                                                                                                                                                              Front center armrest

                                                                                                                                                                                                  Fusion Microtech/Textile upholstery

                                                                                                                                                                                                      Glossy black tunnel console

                                                                                                                                                                                                          Interior illumination, high level

                                                                                                                                                                                                              Rear center armrest

                                                                                                                                                                                                                  Remote key

                                                                                                                                                                                                                      Sculpted gear selector

                                                                                                                                                                                                                          Tailored sport steering wheel, Charcoal

                                                                                                                                                                                                                              Textile interior cabin floor mats

                                                                                                                                                                                                                                  Pack & Load

                                                                                                                                                                                                                                  Foldable load floor with cargo divider and grocery bag holder

                                                                                                                                                                                                                                      Front load compartment

                                                                                                                                                                                                                                          Keyless Entry

                                                                                                                                                                                                                                              Power outlet, cargo compartment

                                                                                                                                                                                                                                                  Power tailgate

                                                                                                                                                                                                                                                      Trailer light check

                                                                                                                                                                                                                                                          Performance

                                                                                                                                                                                                                                                          Hill Descent Control

                                                                                                                                                                                                                                                              Hill Start Assist

                                                                                                                                                                                                                                                                  Shift-by-wire single speed transmission

                                                                                                                                                                                                                                                                      Safety & Security

                                                                                                                                                                                                                                                                      Alarm

                                                                                                                                                                                                                                                                          Automatic door locking

                                                                                                                                                                                                                                                                              Body-colored door handles with ground lighting

                                                                                                                                                                                                                                                                                  Double locking

                                                                                                                                                                                                                                                                                      HomeLink®

                                                                                                                                                                                                                                                                                          Inflatable Curtain

                                                                                                                                                                                                                                                                                              ISOFIX mounting points, rear seat

                                                                                                                                                                                                                                                                                                  Knee airbag, driver side

                                                                                                                                                                                                                                                                                                      Seat belts

                                                                                                                                                                                                                                                                                                          Side impact protection

                                                                                                                                                                                                                                                                                                              Tempered side and rear windows

                                                                                                                                                                                                                                                                                                                  Temporary mobility kit

                                                                                                                                                                                                                                                                                                                      Whiplash injury protection

                                                                                                                                                                                                                                                                                                                          Seats

                                                                                                                                                                                                                                                                                                                          5 seats

                                                                                                                                                                                                                                                                                                                              Comfort front seats

                                                                                                                                                                                                                                                                                                                                  Heated front seats

                                                                                                                                                                                                                                                                                                                                      Heated rear seats

                                                                                                                                                                                                                                                                                                                                          Manual cushion extensions, driver and passenger

                                                                                                                                                                                                                                                                                                                                              Mechanical release, second seat row

                                                                                                                                                                                                                                                                                                                                                  Power 4-way lumbar support

                                                                                                                                                                                                                                                                                                                                                      Power driver seat with memory

                                                                                                                                                                                                                                                                                                                                                          Power passenger seat

                                                                                                                                                                                                                                                                                                                                                              Tech & Sound

                                                                                                                                                                                                                                                                                                                                                              Android Auto

                                                                                                                                                                                                                                                                                                                                                                  Apple CarPlay

                                                                                                                                                                                                                                                                                                                                                                      Bluetooth® connection

                                                                                                                                                                                                                                                                                                                                                                          Google built-in

                                                                                                                                                                                                                                                                                                                                                                              HD Radio & SiriusXM Satellite Radio

                                                                                                                                                                                                                                                                                                                                                                                  High Performance audio system

                                                                                                                                                                                                                                                                                                                                                                                      Steering wheel remote control

                                                                                                                                                                                                                                                                                                                                                                                          Volvo Cars App remote functions

                                                                                                                                                                                                                                                                                                                                                                                              Wireless phone charging
